Los racores de compresión de latón son perfectos para usarlos con tubos de cobre, latón, aluminio o plástico y normalmente se usan en líneas de gasolina, grasa, aceite, agua, vacío y aire. No se recomienda utilizar estos racores con tubos de acero.

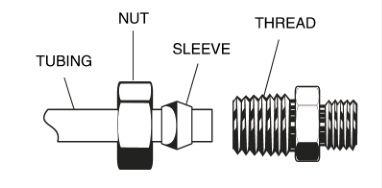

CaracterísticasCorte el tubo por el extremo. Coloque el tubo en el inserto y deslícelo en el racor hasta que llegue al tope. Ajuste la llave aproximadamente 1 1/2 a 2 vueltas más allá del ajuste manual. No ajuste en exceso.
| TAMAÑO | |

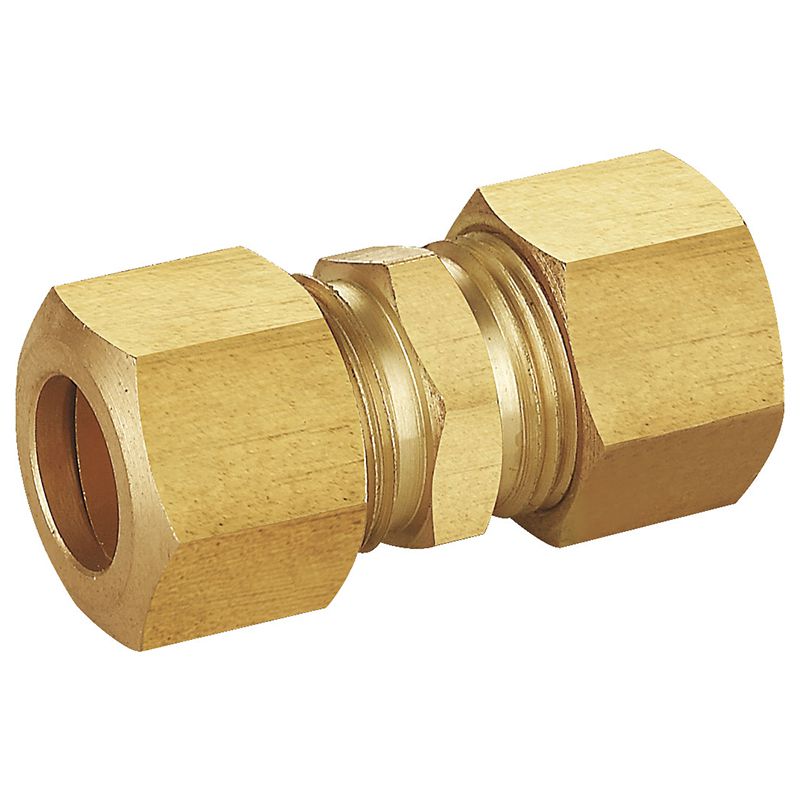

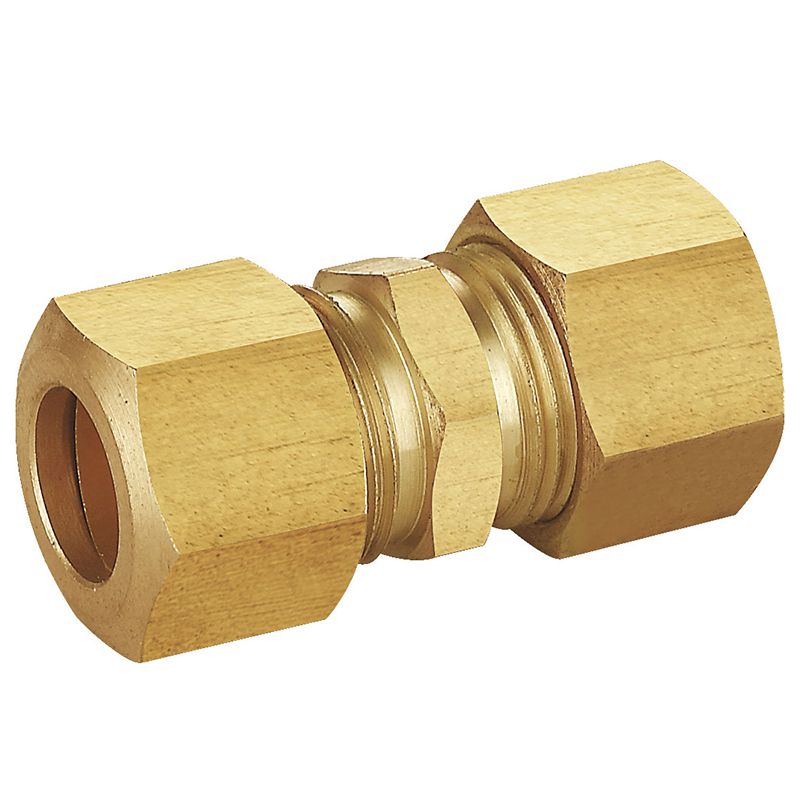

| 1/8“ | 1/2“ |
| 3/16“ | 5/8“ |
| 1/4“ | 3/4“ |
| 5/16“ | 7/8“ |
| 3/8“ | |
| TAMAÑO | |
| 1/4“×1/8“ | 5/8“×3/8“ |
| 1/4“×3/16“ | 5/8“×1/2“ |
| 3/8“×1/4“ | |
| 5/16“×1/4“ | |
| 1/2“×3/8“ | |
| TAMAÑO | ||

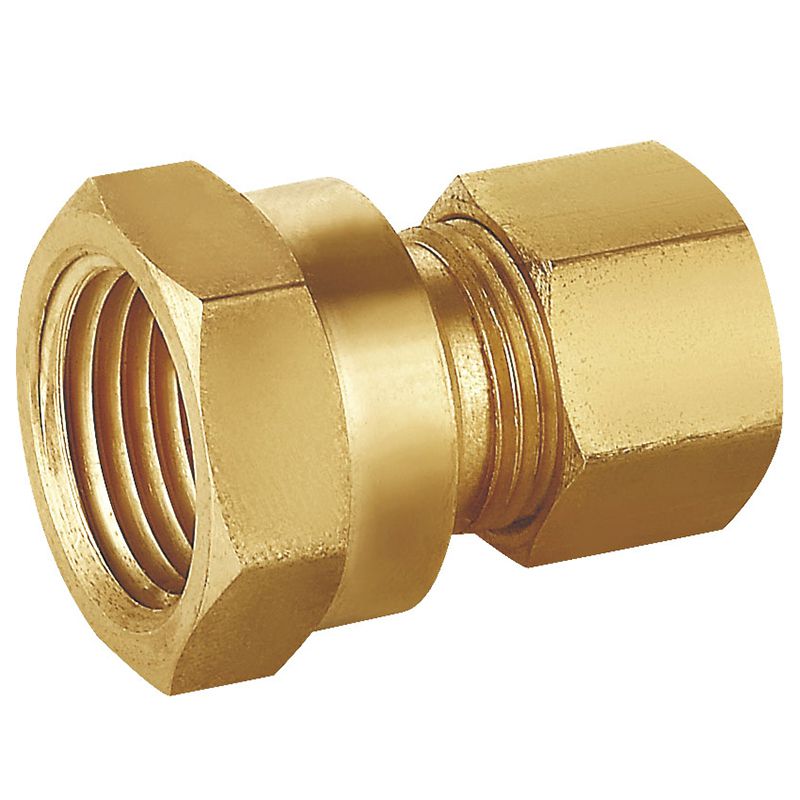

| 1/8“×1/8"F | 1/4“×1/2"F | 3/8“×3/8"F |
| 3/16“×1/8"F | 5/16“×1/8"F | 3/8“×1/2"F |
| 3/16“×1/4"F | 5/16“×1/4"F | 3/8“×3/4"F |
| 1/4“×1/8"F | 5/16“×3/8"F | 1/2“×1/4"F |
| 1/4“×1/4"F | 3/8“×1/8"F | 1/2“×3/8"F |
| 1/4“×3/8"F | 3/8“×1/4"F | 1/2“×1/2"F |
| 3/4“×1/2"F | 5/8“×3/8"F | 1/2“×3/4"F |
| 3/4“×3/4"F | 5/8“×1/2"F | 7/8“×1/2"F |
| 5/8“×3/4"F | 7/8“×3/4"F | |
| TAMAÑO | ||

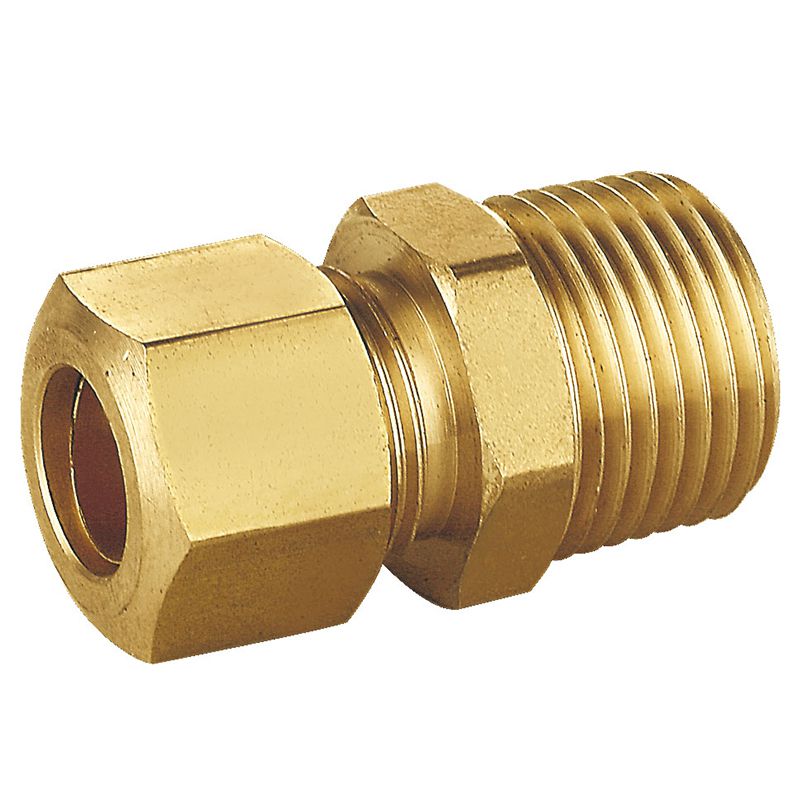

| 1/8“×1/8"M | 1/4“×1/2"M | 3/8“×3/8"M |
| 3/16“×1/8"M | 5/16“×1/8"M | 3/8“×1/2"M |
| 3/16“×1/4"M | 5/16“×1/4"M | 3/8“×3/4"M |
| 1/4“×1/8"M | 5/16“×3/8"M | 1/2“×1/4"M |
| 1/4“×1/4"M | 3/8“×1/8"M | 1/2“×3/8"M |
| 1/4“×3/8"M | 3/8“×1/4"M | 1/2“×1/2"M |
| 1/2“×3/4"M | 3/4“×1/2"M | 7/8“×1/2"M |
| 5/8“×3/8"M | 3/4“×3/4"M | 7/8“×3/4"M |
| 5/8“×1/2"M | 5/8“×3/4"M | |
| TAMAÑO | |

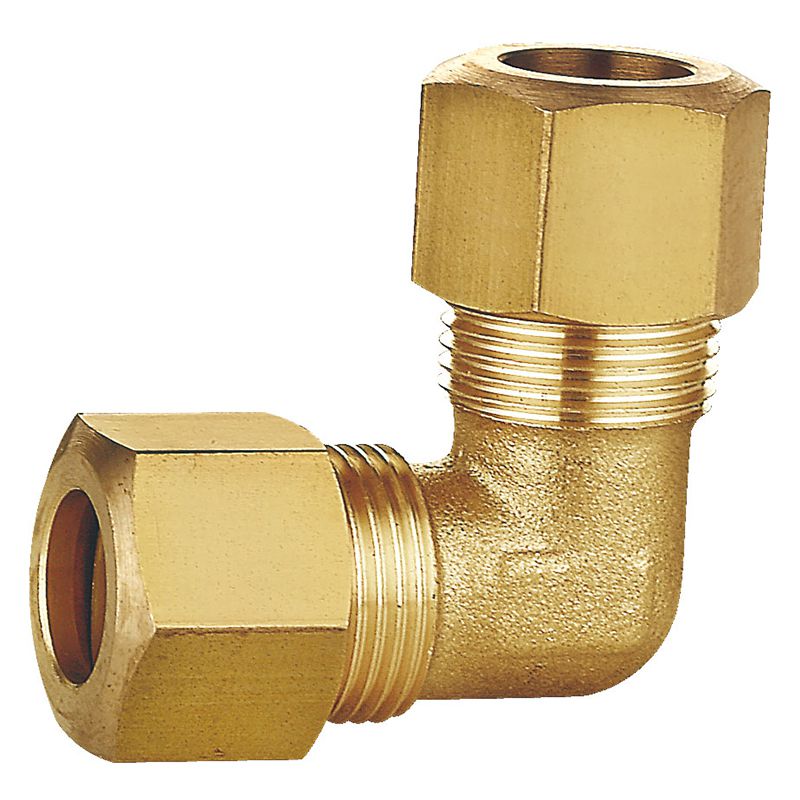

| 1/8“ | 1/2“ |
| 3/16“ | 5/8“ |
| 1/4“ | 3/4“ |
| 5/16“ | 7/8“ |
| 3/8“ | |
| TAMAÑO | |||
| 1/8“×1/8"F | 1/4“×1/2"F | 3/8“×3/8"F | 5/8“×3/8"F |
| 3/16“×1/8"F | 5/16“×1/8"F | 3/8“×1/2"F | 5/8“×1/2"F |
| 3/16“×1/4"F | 5/16“×1/4"F | 1/2“×1/4"F | 5/8“×3/4"F |
| 1/4“×1/8"F | 5/16“×3/8"F | 1/2“×3/8"F | 3/4“×1/2"F |
| 1/4“×1/4"F | 3/8“×1/8"F | 1/2“×1/2"F | 3/4“×3/4"F |
| 1/4“×3/8"F | 3/8“×1/4"F | 1/2“×3/4"F | 7/8“×3/4"F |
| TAMAÑO | |||

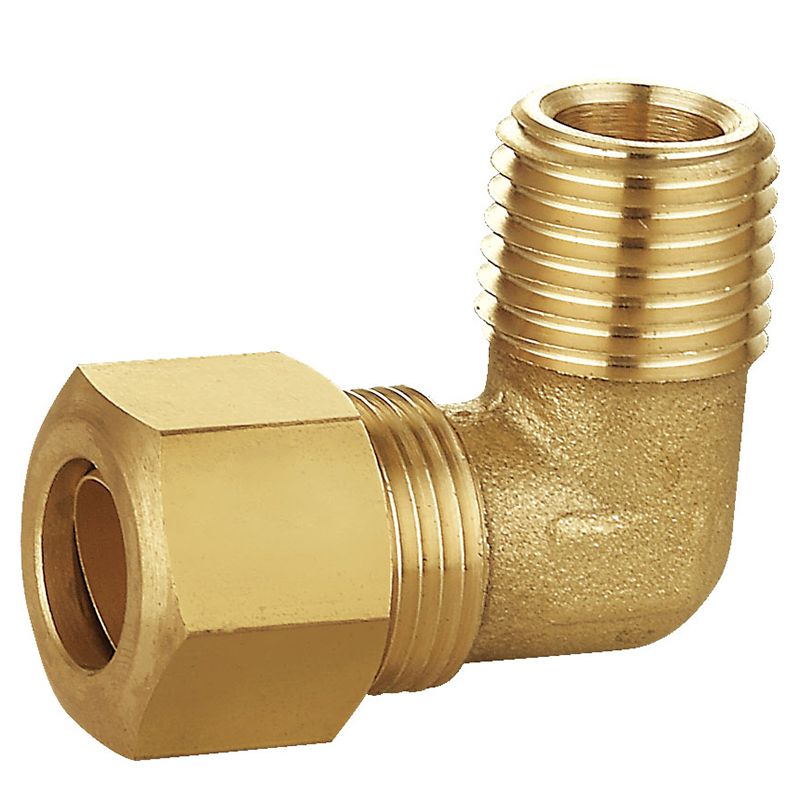

| 1/8“×1/8"M | 1/4“×1/2"M | 3/8“×3/8"M | 5/8“×3/8"M |
| 3/16“×1/8"M | 5/16“×1/8"M | 3/8“×1/2"M | 5/8“×1/2"M |
| 3/16“×1/4"M | 5/16“×1/4"M | 1/2“×1/4"M | 5/8“×3/4"M |
| 1/4“×1/8"M | 5/16“×3/8"M | 1/2“×3/8"M | 3/4“×1/2"M |
| 1/4“×1/4"M | 3/8“×1/8"M | 1/2“×1/2"M | 3/4“×3/4"M |
| 1/4“×3/8"M | 3/8“×1/4"M | 1/2“×3/4"M | 7/8“×3/4"M |
| TAMAÑO | |

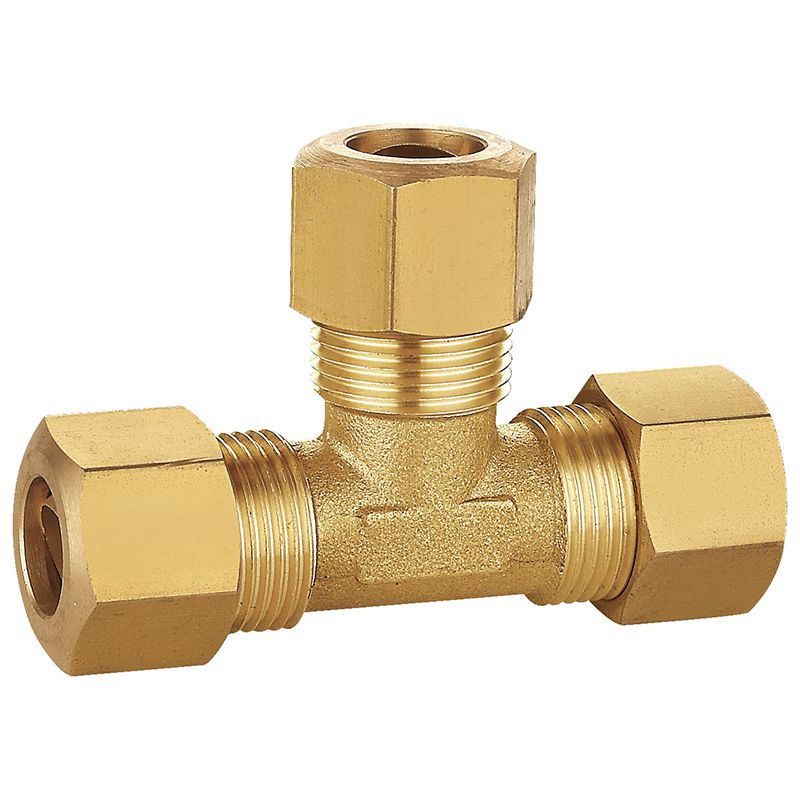

| 1/8“ | 1/2“ |
| 3/16“ | 5/8“ |
| 1/4“ | 3/4“ |
| 5/16“ | 7/8“ |
| 3/8“ | |
| TAMAÑO |

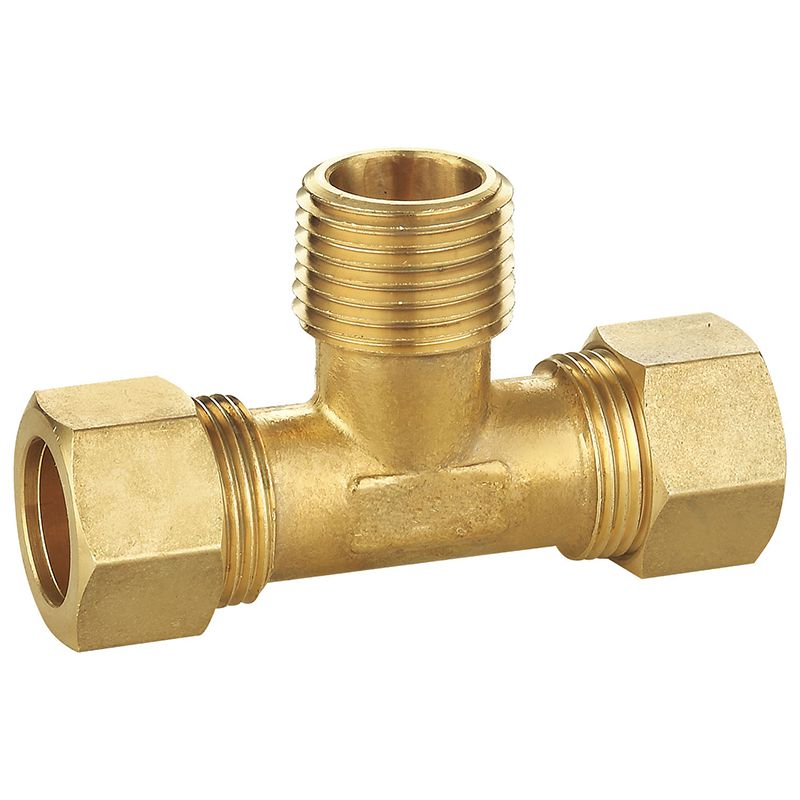

| 1/4“×1/4“×1/4“M |
| 3/8“×3/8“×1/4“M |
| 3/8“×3/8“×3/8“M |
| 1/2“×1/2“×3/8“M |
| 1/2“×1/2“×1/2“M |
HONSON es una empresa especializada en la fabricación y suministro de una amplia variedad de racores de latón para satisfacer sus necesidades de aplicación.
